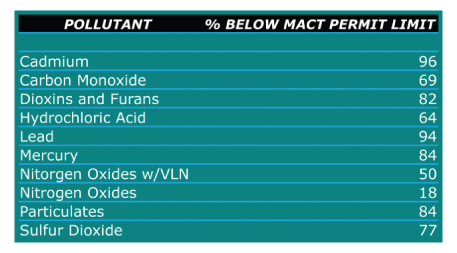

Under the Clean Air Act, WTE facilities are required to use the most up-to-date air pollution control technology available so emissions are safe for the health of both humans and the environment. This new equipment must meet or exceed the EPA’s Maximum Achievable Control Technology [pdf] standards. WTE plant emissions are far below the limits the EPA set as safe, and they get better all the time. The Minneapolis WTE facility, for example, uses a combination of tools and procedures to control its emissions, including injecting air into the boiler to control nitrogen oxide emissions; passing combustion gases through a baghouse containing a series of filters to remove particulate matter (ash), metals and dioxins; and injecting activated carbon into the exhaust gases to control mercury.
Opponents of WTEs often make misleading arguments [pdf] based on emissions data or policy decisions from 2000 or prior, before the MACT technology was put into place, instead of acknowledging WTE’s impressive results. Or they use EPA data stating that trash burning is the largest source of cancer-causing dioxins. This is true, but the data refer to the uncontrolled backyard barrel burning of trash, and specifically not to WTEs.
These are the sort of anti-science tactics — quoting old data, misattributing data or results, cherry picking data — that have been used by climate change deniers.
The Nontoxic and Widely Used Ash
WTEs reduce the volume of trash by about 90 percent, leaving about 10 percent in the form of ash that still needs to be landfilled unless it can be used elsewhere. Opponents often argue that the ash is toxic, but the EPA developed a test called the Toxicity Characteristic Leaching Procedure that tests the ash with an acidic liquid, causing any of 40 identified contaminants — in other words, reactive metals such as cadmium — to leach out. If these metals are found in amounts greater than a fraction of a percent, the ash is considered hazardous. Scientists have tested ash from every WTE facility in the U.S. over the course of several years, and the tests have consistently shown that the ash is nonhazardous.
It turns out that while WTEs do emit greenhouse gases, they emit far fewer GHGs on a ton-for-ton basis than landfilling. In fact, 31 state pollution control agencies now class WTEs as renewable energy.
Consequently, about 3 million tons of concrete-like ash or more than one-third of WTE residue is being reused annually for and in a number of things, including roadbed material, landfill cover, asphalt, artificial reefs and cement blocks. WTE operators are actively looking for other ways to reuse the ash renewably instead of disposing of the balance in landfills. Mixing it into concrete is one solution that offsets the production of cement, which otherwise accounts for 5 percent of the world’s carbon emissions.
WTEs Fight Climate Change

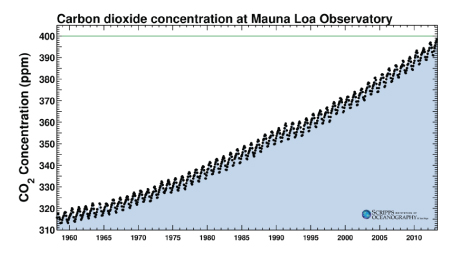

Burning trash puts large amounts of carbon dioxide into the atmosphere, and with the atmosphere already at a dangerously high 400 parts per million — higher than it has been in at least 600,000 years — to do so, opponents reason, will only compound the climate change problem. But it turns out that while WTEs do emit greenhouse gases, they emit far fewer GHGs on a ton-for-ton basis than landfilling. In fact, 31 state pollution control agencies [pdf] now class WTEs as renewable energy. To understand why, consider a ton of post-recycled, post-composted trash in either of two scenarios: landfilled, or burned for energy.
First, roughly 53 percent of post-recycled, post-composted trash is still derived from organic materials and so is part of Earth’s carbon cycle anyway. Burning it does not increase the atmosphere’s carbon load, while burning the remaining 47 percent, which is derived from petroleum carbon, prevents other, worse emissions. According to the EPA [pdf], every ton of garbage processed at a WTE facility actually prevents approximately 1 ton of emitted CO2 equivalent from going into the atmosphere.
This is because landfills are the U.S.’s largest emitter of methane, a very potent greenhouse gas. According to the Intergovernmental Panel on Climate Change’s Fourth Assessment on Climate Change, in a 20-year window methane was shown to be 72 times more potent a greenhouse gas than CO2. Capped landfills now have the technology to capture methane, but only about 34 percent [pdf] of that methane is actually used to generate electricity. The rest leaks away or is flared off, and nothing at all is captured for the first few decades a landfill sits open.
Ensia shares solutions-focused stories free of charge through our online magazine and partner media. That means audiences around the world have ready access to stories that can — and do — help them shape a better future. If you value our work, please show your support today.
Yes, I'll support Ensia!
Sincerely, Susan Hubbard
Nothing Left to Waste
Sincerely, Jon Foley
Garbage is burned in modern power plants all over the Minnesota after processing and resource recovery for a uniform fuel that allows for the use of modern MACT standards of which Otto writes; even so, they are not located in the middle of metropolitan areas as HERC is.
Why is the discussion always having a Tabu on "reducing" - is it because it doesn't really fit into the capitalistic model of "Take-Make-Dispose" and the strive for infinite Growth. The waste-pyramid seems to always "kind of" start at recycling...
http://sorenandersson.com/incinerating-resources-is-there-any-excuse-for-it/
Think about the emissions from a '57 Chevy versus a modern automobile; both have controls, but saying the crank case ventilation of the Chevy, it's MACT standard if you will, is equivalent to what is done to deal with automobile pollution today is ridiculous and that is what you are doing with HERC.
Expecting any municipality to accept increased emissions given the fact that there are alternatives, and they do exist for a price (regardless the 'just so' statements above), is pretty wack; folks posting here can run a few numbers as well, but the numbers that matter to Hennepin County and Covanta are the new tipping fees for those extra tons of garbage to burn.
Without state and federal subsidy, FTE would just go away on its own. Asking any locals to join in that subsidy (through health care expense incurred by needless exposure to particulates formed after all controls) is ridiculous.
Mr. Otto is simply a shill for Covanta and Hennepin County and substituting "liberal" for NIMBY and spouting pseudoscience and techno speak does not make a case for anything but his own irrelevance.
If you want to get rid of garbage, you stop producing it for once you have it, you have to pay to deal with it. WTE is not something we can afford.
I get arguments from folks, but if you have to go in this direction, plasma arc gasification makes the most sense with use of all of the fuel made and energy released as possible, not some worked over tech from half a century ago (HERC).
Personally, if we are to have metropolitan facilities, they should be plasma gasification, not incineration, as together with reduction, reuse and recycling efforts, pollution of surrounding areas is far less of a concern with this technology.
I'll say it yet again: HERC is the past and I don't need to visit it to know it. I've studied this tech extensively and there is no way to improve it, although you can try to tighten up control of what gets burnt (hard task). If you have control of fuels, then I accept that controls can make things relatively safe, but to pretend that we can do this at HERC is, again, ridiculous.
I am most encouraged by your recent article in the Huff Post regarding Waste to Energy (WTE) plants. In the mid-1970's I was employed by The 4th Sink Management Group, a WTE planning firm. As far as I know, we were the first consulting firm to provide a statewide strategy for the full recovery of municipal solid waste. When "progress reports" such as your article appear, I am more than nostalgic. I am as frustrated as I was when we delivered a copy of that statewide strategy to an upper level civil servant of the state. He held it for a moment...and then tossed it into the trash by his desk. He tossed it away because he was in charge of state-wide landfill inspections. Landfills are as obsolete now as they were in the 1970's and WTEs remain as the only economically and ecologically viable alternative. Greenhouse gases were not considered in the mmid 1970s. we spoke of only "leachate" and "air quality". I submit that to draw attention to the total cost of wasting-away our planet, a new chart of cost accounts has to be mandated, beyond the current environmental reviews, that accounts for the unbridled theft, in dollars amounts of public air, water and land. These 3 are known as "engineering sinks" that profiteers have used at no private cost. The private and public economies, the 4th and final "sink", must be placed in the ecological-economic equation . A publically regulated and total account of the ecological costs and benefits of landfills vs. WTEs is needed to avoid the legacy of a planetary disaster selfishly passed on to our children and grandchildren. Corporations must be taxed for the damage done, and yes, we must all pay now or pay much more later.
"Allowable" levels of pollutants always beg the question of how much is OK. If it is not OK to push mercury into the atmosphere, then it is not OK. Smaller amounts mean we are going to die more slowly. So to argue that a reduction of 97% of mercury is good ignores the other 3%, which, if you live close to one of these facilities, is 3% too much.
Fact is, our waste stream is not designed to have any useful end life. It is not seen as the manufacturer's responsibility to worry about how it is to be recycled, incinerated or dumped in a land fill. Without this design consideration, incineration will always be a mug's game, forcing extra expense into the process to deal with this failure of design and responsibility.
At the same time I am sure that the data on final CO2 equivelant numbers from in incineration vs landfill are correct, and I am equally sure that with all the flack that the incineration business gets, the industry has improved to a much greater degree than the coal electric industry has, making discussion of relative mercury levels frustrating for advocates of incineration.
Two things here: one, allowable levels of contamination are often stupid in terms of prevention of toxins from entering the environment and need serious questioning and review.
Two, these facilities are expensive and tend to have their own momentum as time moves forward, locking us into a product to waste paradigm that is destructive as well. Looking forward we are much better off making a leap to eliminating the concept of waste: products designed so that waste equals food for biological or industrial processes, and actually making landfills and incineration illegal.
Otherwise it is just a wrinkle on the same issue.
Reality? Spending on LEEDS buildings is becoming illegal for many state governments, Kansas is passing a law to make state spending on any sustainable initiative illegal, and the infinite growth maniacs are in charge of way too many corporations and governments.
So, good luck.
Andrew spearheaded the Hennepin Energy Recovery Center incinerator that Otto uses as an example here and Andrew insists to this very day that it is 'green' as it must be perceived if he is to win a Minneapolis Democratic Farmer Labor Party endorsement for mayor this Saturday.
The piece is so full of 'truthiness' and ignorance of the different technologies in use by various members of the 'waste to energy' cult that it is hard to believe that anyone could take it seriously.
Otto should stick to fiction as he is better at it; come to think of it, he has; I don't know if Andrew and other WTE folks should glad for it or not.
In the overall picture of environmental risks, municipal solid waste incineration ranks very low compared to the effects of our automobile-centric transportation system, our coal and fossil fuel-based energy system, and other non-point sources like recreational fires, burn barrels, gas stations, etc. (see my article in the peer-reviewed scientific journal Risk Analysis for documentation). It seems to me that the place to focus our concerns and efforts are on the sources causing the most damage to our health.
The Europeans confronted the waste-to-energy dilemma in the 90s and made a conscious decision to use well-controlled waste-to-energy as a component of their waste management system. It is imperfect, but by general concensus it is better than landfilling. Perhaps one day businesses will sell only products that are completely reuseable and recyclable, and everyone will participate in the process of reusing, composting and recycling, but that day is not yet near.
Neil Seldman, Institute for Local Self-Reliance
This starts with regulating the chemistry in product packaging (Grunpunkt+), then having effective waste collection in every venue people congregate and consume, then having effective composting and recycling to "purify" your WTE feedstock, this includes separation machinery and human labor. The WTE system itself then needs to have effective pollution controls, and a responsible ash management solution.
No WTE proposal I've seen in the US wants to do the job right.
My question concerns the methane emission rates from landfills. You link to an EPA document related to the development of their Waste Reduction Model (WARM), which gives estimated fractions of waste entering landfills with different types of methane recovery. As I interpret the document, and I may be in error on this, the estimates are for how much of each type of landfill at present. This includes waste landfilled many years ago, in very old landfills, which would not have good LFG recovery or power generation. Many of these older sites are probably no longer accepting new material and may even be covered over.
If one were to landfill a ton of organic matter today, it would be more likely to go in a newer landfill, which would be more likely than the rates you cite to have LFG recovery.
Essentially, it seems like you're basing your methane emission calculations on the average landfill technology mix, whereas the actual rate of emissions for waste landfilled today would depend on the marginal landfill technology mix, which is likely to release substantially less methane.
I doubt this is enough to cause a significant change in your conclusions, but it's worth clarifying.
It'll probably be dismissed as another ad hominem attack, but I have lost any respect that I once had for Greg Pratt.
There is no way to make burning anything low impact enough not to worry about resulting pollution wherever in the world this is done. Pratt knows this, I am certain, but I don't expect him to admit it.
On our way to zero waste, we must use technology that deals with the capacity of human beings to follow through on any method, i.e., it must be close to fool proof.
The economics of a relatively primitive WTE plant like HERC or the marginally better incineration done when trash is processed to recover some of recyclables and hazardous materials, work better than more modern tech, but if the goal is to reduce landfilling and allow the methods of reduction, recycling, reuse and composting to catch up, then the more expensive and cleaner methods of dealing with waste make more sense.
Folks who dismiss factual arguments as ad hominem attacks are not to be believed.
The process is also simple to understand. It eradicate pollutant and odor almost zero. How the smoke goes through a condenser
called E.A.S.T. inside the condenser
the smoke is transform into ash or
tar or substance that can be collected and use. No smoke no pollution. We hope this technology
can help in solving trash problem.
Email us for more information and video. jubeck@yahoo.com , fordeal76@yahoo.com
